DSPM-20ATD Laser Cutting Screw Air Compressor

MODEL：DSPM-20ATD

POWER：15KW

HORSEPOWER：20HP

Product desciption

With the development of science and technology, more and more metal machining enterprises choose to use laser cutting machine, the use of laser cutting machine must be equipped with high quality, high pressure, low water vapor air compressor. For this reason, Desran compressor specially customized 16 bar combined permanent magnet variable frequency screw compressor for laser cutting machine. It integrates permanent magnet variable frequency screw compressor, air dryer, air tank and high efficiency filter, which can directly output high-quality 16 bar compressed air and perfectly cooperate with laser cutting machine.

Main advantages:

◆ 16 bar pressure discharge, ensure efficient operation of laser cutting machine
◆ Combination design, save factory space
◆ No need for installation, just plug and Run
◆ High performance screw airend with high energy efficiency permanent magnet frequency conversion motor, energy saving and environmental protection
◆ Special made air dryer and filter, ensuring Low moisture and Low Oil content air delivery, protecting the laser Lens
◆ Equipped with high efficiency filter, reduce the oil content of compressed air, extend the life of laser head lens

Technical parameters of Laser cutting combined PM motor VSD screw air compressor

Model	Power		Air displacement(m3.min)	Discharge pressure (Mpa)	Dimension	Pipe Diameter	Weight
Model	KW	HP	Air displacement(m3.min)	Discharge pressure (Mpa)	(L×W×H)mm	Pipe Diameter	(kg)
DSPM-15ATD	11	15	1.2	1.3	15806501500	G1/2"	415
DSPM-15ATD	11	15	0.9	1.6	15806501500	G1/2"	415
DSPM-20ATD	15	20	1.7	1.3	15806501500	G1/2"	430
DSPM-20ATD	15	20	1.3	1.6	15806501500	G1/2"	430

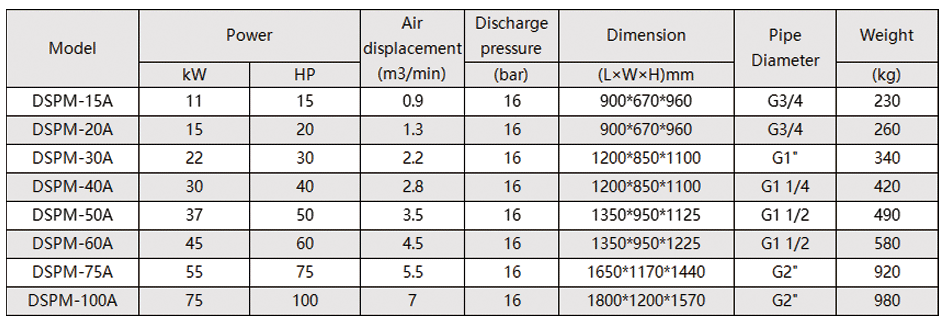

Technical parameters of Laser cutting PM motor VSD screw air compressor

Model	Power		Air displacement(m3.min)	Discharge pressure (Mpa)	Dimension	Pipe Diameter	Weight
Model	KW	HP	Air displacement(m3.min)	Discharge pressure (Mpa)	(L×W×H)mm	Pipe Diameter	(kg)
DSPM-15A	11	15	1.2	1.3	950650910	G3/4	230
DSPM-15A	11	15	0.9	1.6	950650910	G3/4	230
DSPM-20A	15	20	1.7	1.3	950650910	G3/4	260
DSPM-20A	15	20	1.3	1.6	950650910	G3/4	260
DSPM-30A	22	30	2.9	1.3	12008501100	G1"	340
DSPM-30A	22	30	2.2	1.6	12008501100	G1"	340
DSPM-50A	37	50	4.5	1.3	13509501125	G1 1/2	490
DSPM-50A	37	50	3.5	1.6	13509501125	G1 1/2	490

Technical parameters of Laser cutting PM motor VSD screw air compressor
